Multiplexers

Multiplexer Design to Specifications

Bree Engineering can design and build to your specifications in our state of the art manufacturing facility. Our  multiplexed filters are built to the highest standards. We are ISO 9001 certified and all products pass a quality control process to deliver consistent, reliable multiplexers for your project that meet specification.

To start the quote process please contact our sales team.

Sample Multiplexer Design

Bree Engineering Part Number 802857

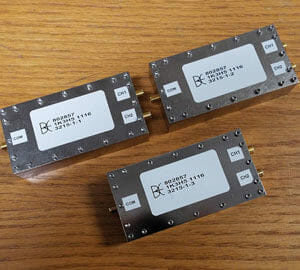

Bree P/N 802857 is a diplexer and is part of a series of Multiplexers offered by Bree Engineering.

Specifications

This diplexer passes 698 MHz to 980 MHz in one channel and 1396 MHz to 3920 MHz in the other channel. Passband loss is 1.1 dBa maximum with passband VSWR greater than 14 dBa. Channel to channel isolation is 60 dBa minimum. The power rating of this diplexer 25 W CW with SMA-F connectors. The size is 4.0 X 2.0 X 1.0.

The assembly is built to achieve stringent MIL‐STD‐202 environmental conditions.

Test Data Sheet, Channel 1, pdf
Test Data Sheet Channel 2, pdf
Outline Drawing, pdf
